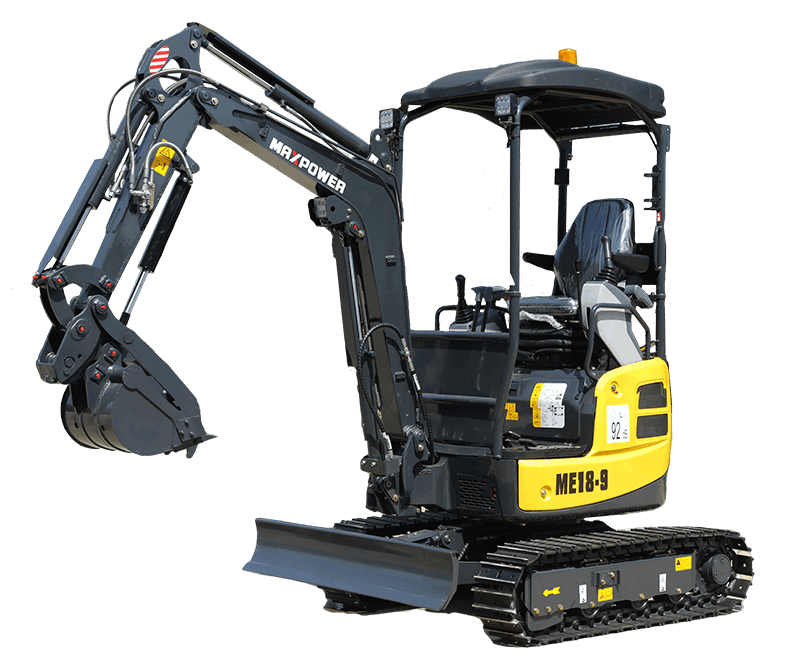

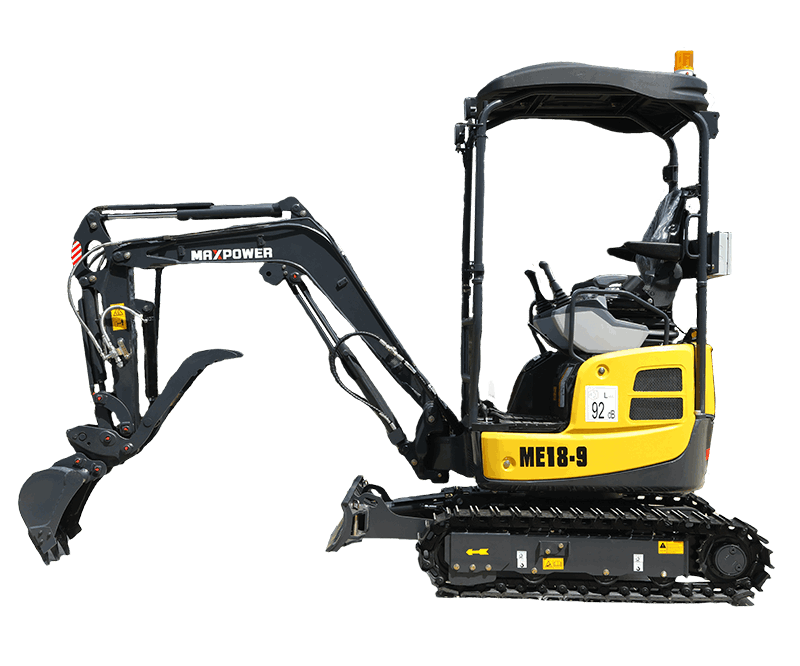

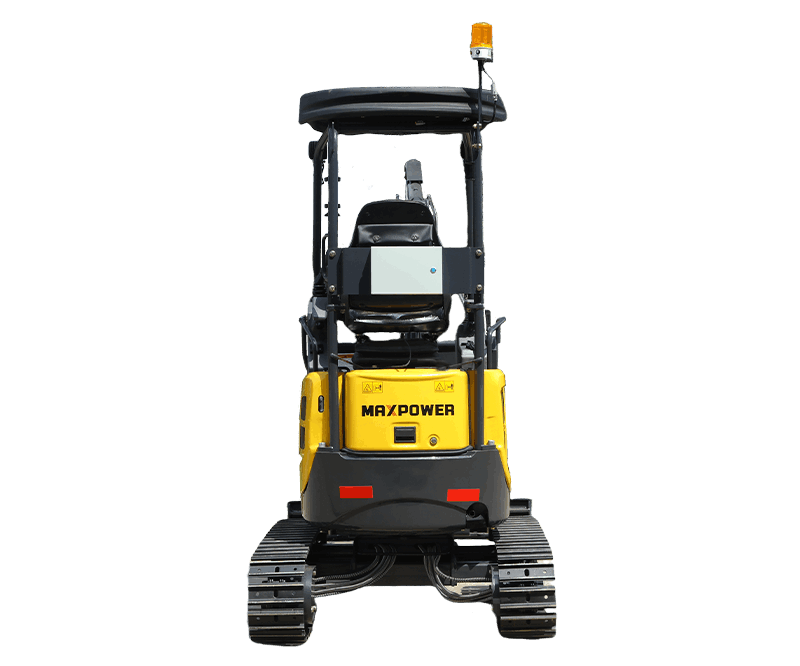

Operating weight1.86 tons
EngineYanmar 3TNV70 option
Rated power10.3 kW @ 2200 rpm
Bucket capacity0.05 m³
Hydraulic pumpLX10VO28 / TFA10V28
Maximum flow61.6 / 67.2 L/min
Overall length3460 mm
Overall width950 / 1280 mm
Cab height2440 mm
Arm length950 mm
Boom length1720 mm
Track width950 / 1280 mm
Core Configuration

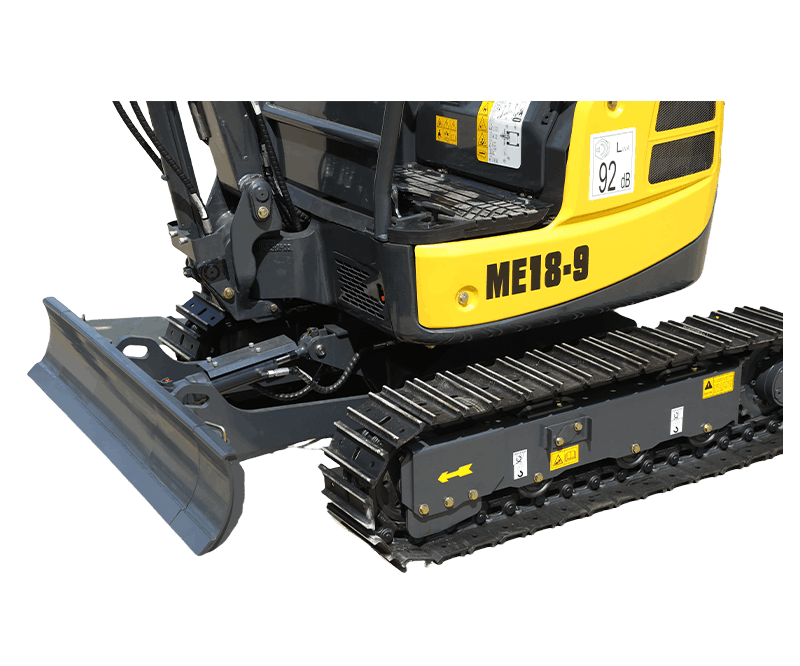

- Adjustable chassis width for narrow access and added stability

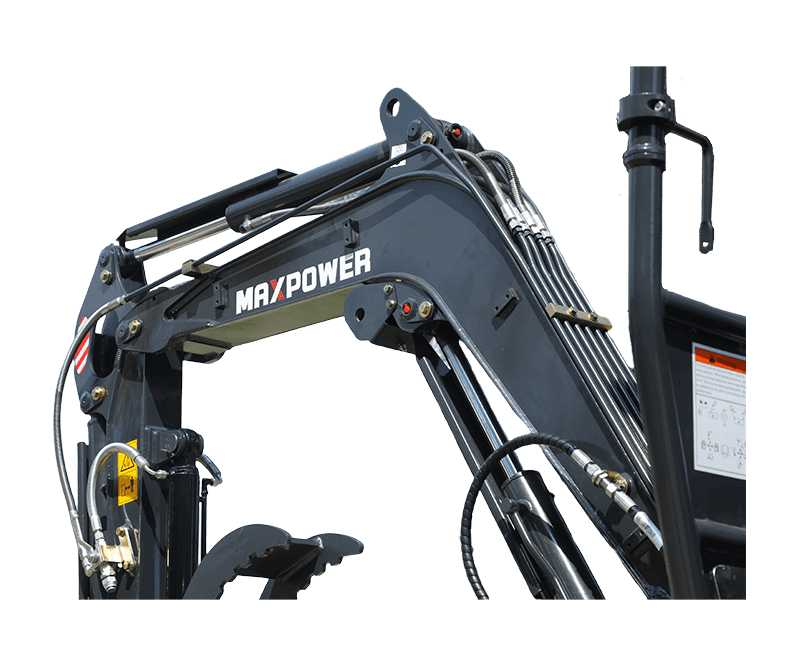

- Left and right boom deflection for working close to walls
- Yanmar engine options for efficient compact performance
- Standardized attachment interface for hammers, grabs and other tools
Best suited for
- Residential earthworks and landscaping
- Pipe, cable and drainage trenching
- Sites with narrow access or limited working room
ME35.9
ME35.9 - 3.8 Ton Excavator
A high-value compact excavator for contractors who need more reach, digging force and daily productivity without moving into a large machine class.
ME35 brochure
Download the ME35 promotional sheet
Share the brochure with your team or keep it handy when comparing machine options.
View PDF
Core Configuration
- Yanmar engine with efficient direct-injection diesel performance
- International brand main pump and main valve for efficiency
- World brand hydraulic components for strong energy efficiency
- High-strength boom with powerful excavating capacity
- Reinforced cabin for stable and comfortable operation
- Color LCD monitor for maintenance visibility
- Multiple operation modes available
Performance Parameters
Operating weight3.75 tons
Bucket capacity0.12 m³
Engine modelYanmar 3TNV88F
Rated power19.6 kW @ 2200 rpm
Fuel tank41 L
Travel speed4.5 / 2.7 km/h
Swing speed9.5 rpm
Bucket digging force32 kN
Ground pressure37.5 kPa
Hydraulic oil tank60 L
Machine Dimensions
- Overall Length: 4750 mm
- Overall Width: 1740 mm
- Total Height: 2470 mm
- Ground Clearance: 320 mm
- Track Length: 1700 mm
- Track Width: 1740 mm
Operating Range
- Max Digging Height: 4960 mm
- Max Dumping Height: 3560 mm
- Max Digging Depth: 3150 mm
- Max Digging Reach: 5250 mm
- Min Swing Radius: 2100 mm

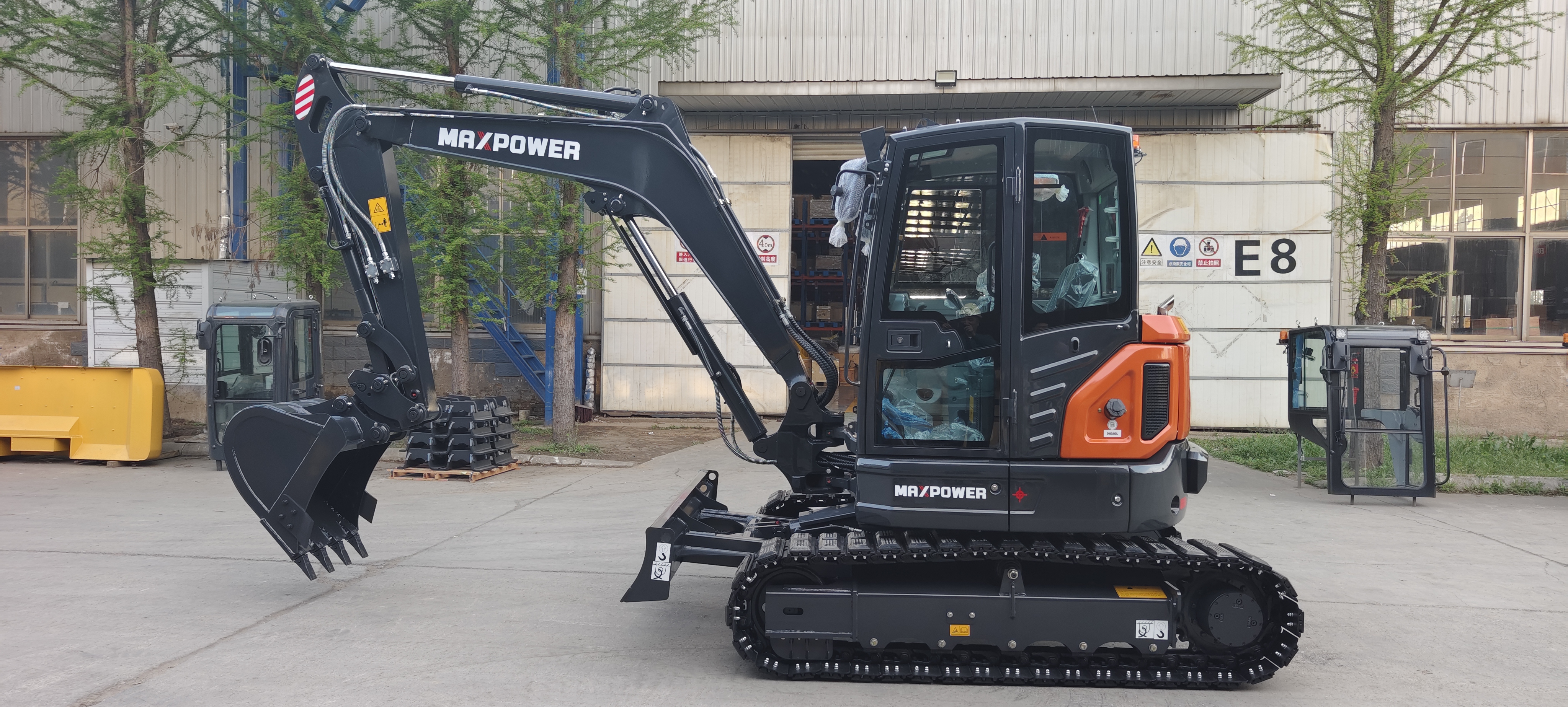

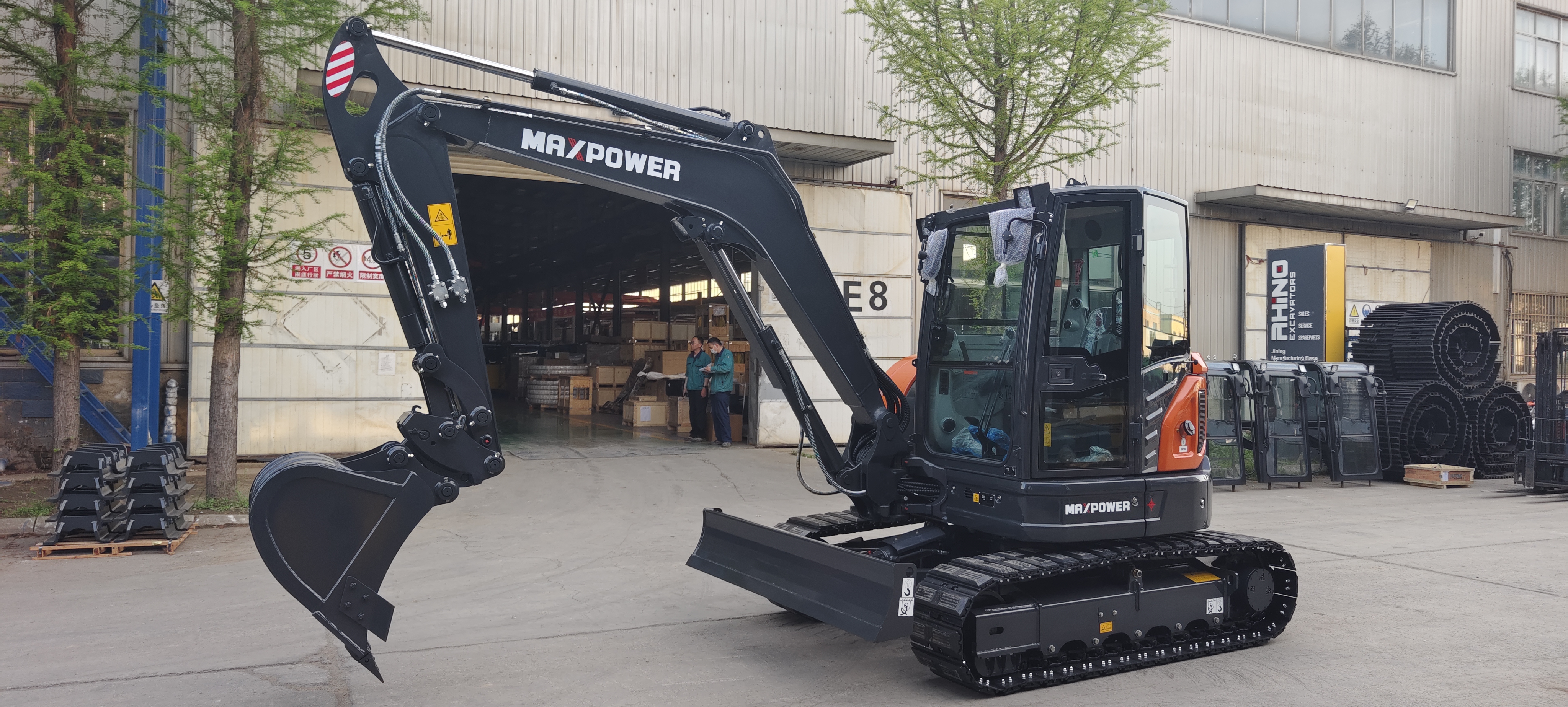

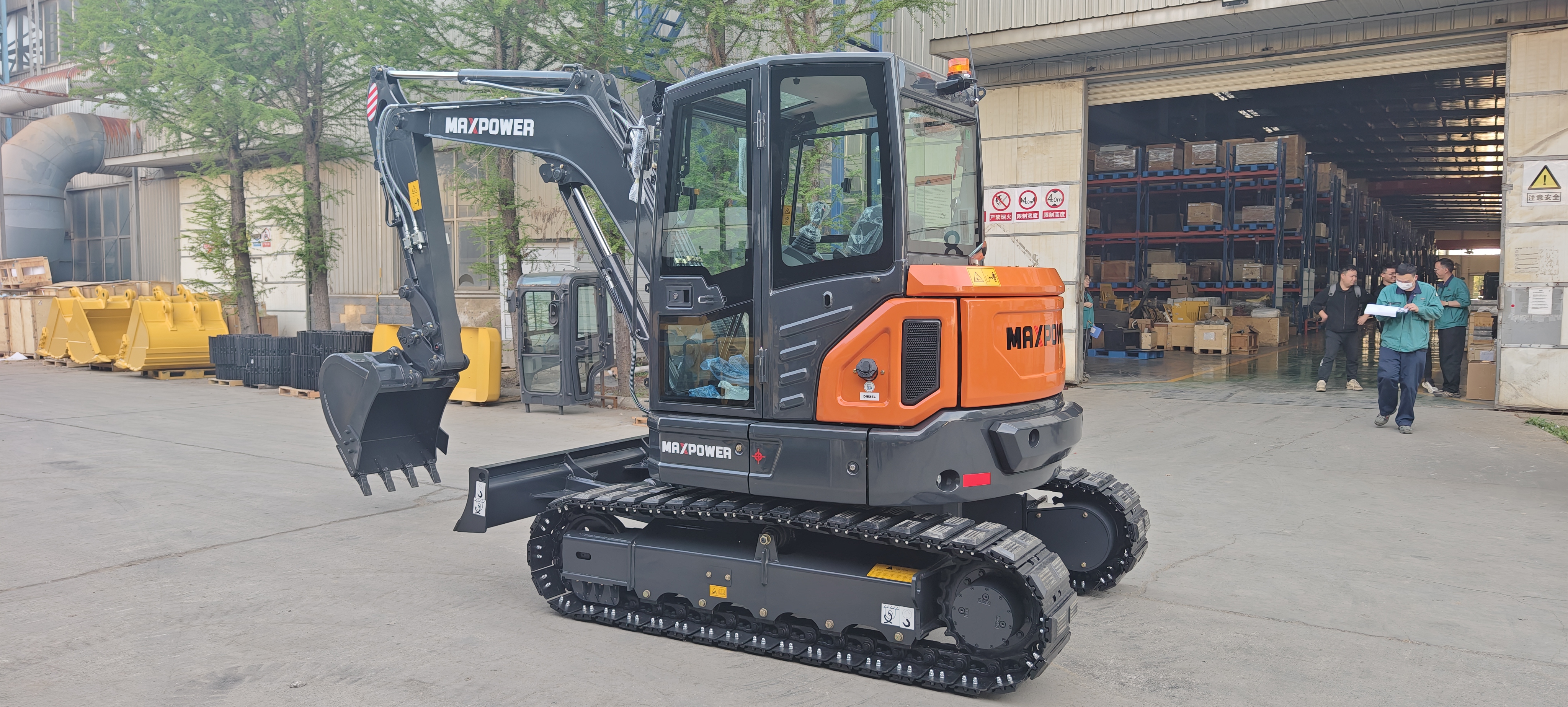

ME60U key data
Core machine information
Use these figures when comparing power, bucket capacity and operating weight.
35.5kW Power @ 2400 rpm
0.22m³ Standard bucket
5420kg Operating weight
View PDF
Operating weight5420 kg
Bucket capacity0.22 m³
Engine modelYanmar 4TNV86CT
Rated power35.5 kW @ 2400 rpm
Hydraulic pumpLe-Hydraulix LX10VO72
Maximum flow158.4 L/min
Overall length5630 mm
Overall width1960 mm
Overall height2530 mm
Bucket digging force40.2 kN
Core Configuration
- Yanmar 4TNV86CT engine with direct injection and turbocharging
- Self-developed X-shaped track frame for stability
- Reinforced boom and wear-resistant bucket materials
- Digital display, Bluetooth audio and air-conditioned cab
- Wide-opening hood for easier service access
Best suited for
- Civil earthworks and site preparation
- Bulk trenching, drainage and utility work
- Jobs needing more flow, reach and lifting stability
